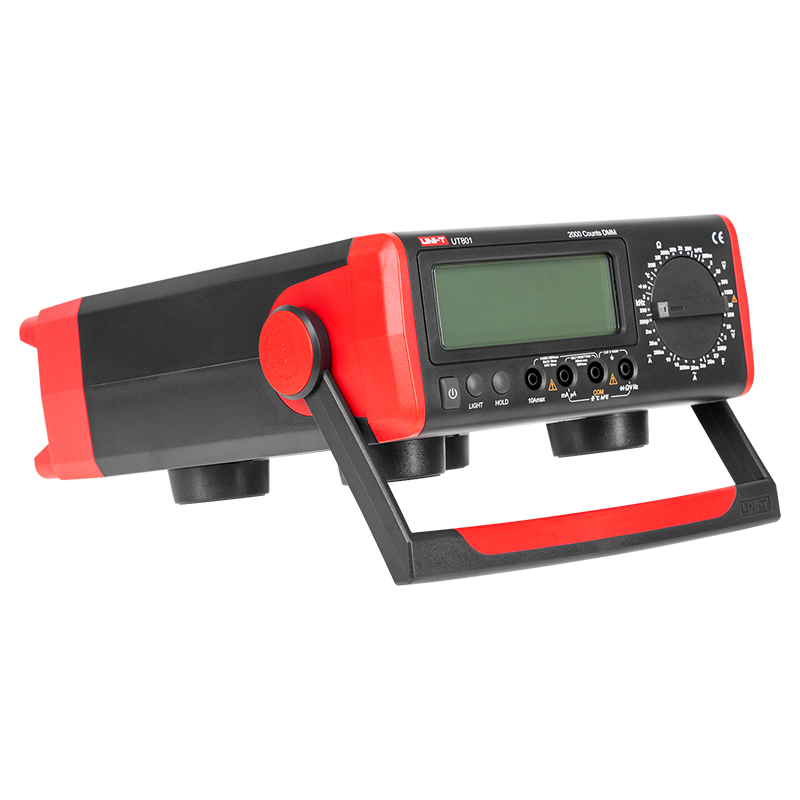

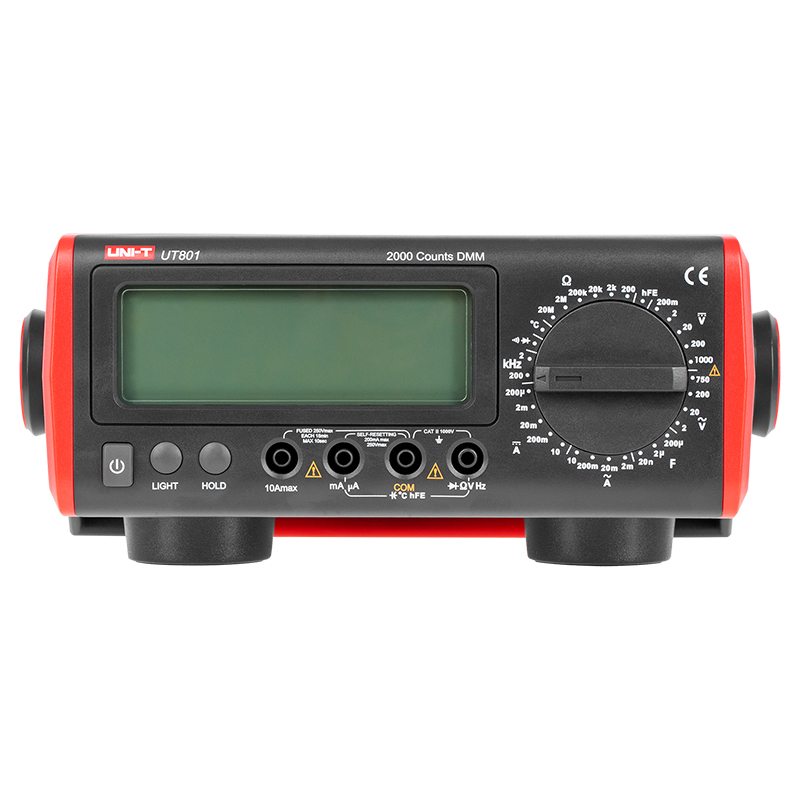

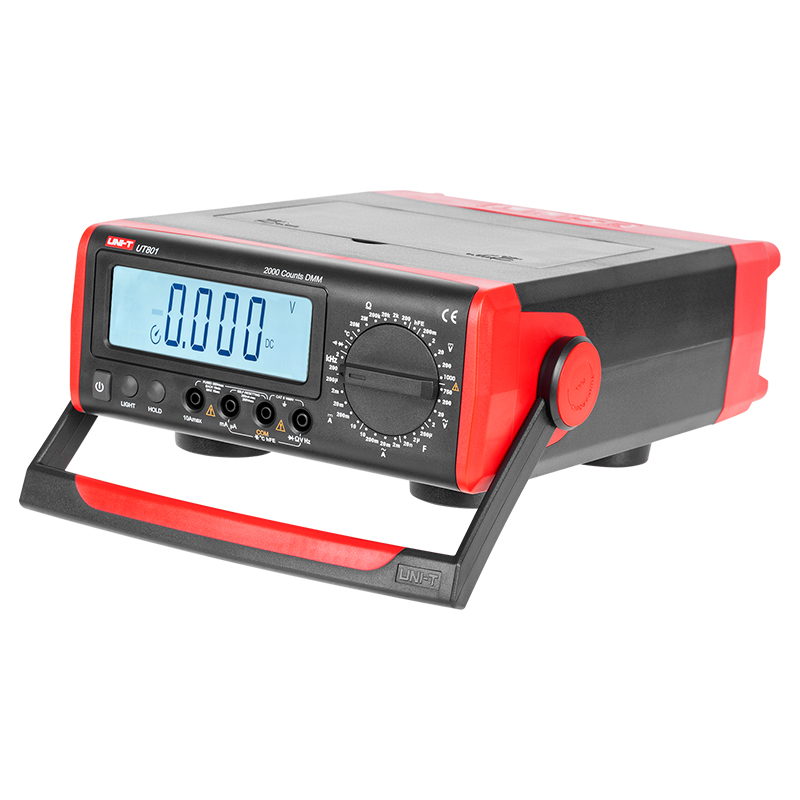

Multimetru Digital Bench Ut 801c Uni-t

Multimetru universal de laborator, model UT 801C.

Marimi masurate:
Tensiune DC: 200mV/2V/20V/200V/1000V, +/- (0.5%+2)
Tensiune AC: 2V/20V/200V/1000V, +/- (0.8%+3)
Curent DC: 200µA/2mA/20mA/200mA/10A, +/- (0.8%+2)
Curent AC: 2mA/20mA/200mA/10A, +/- (1.0%+3)
Rezistenta: 200ohm/2kohm/20kohm/200kohm/2Mohm/20Mohm, +/-(0.8%+3)
Capacitate: 20nF/2µF/200µF, +/-(4%+3)
Frecventa: 2kHz/200kHz, +/-(1.5%+5)
Temperatura: - 40°C ... 1000°C, +/-(1.2%+3)

Functii speciale:
Masurare tranzistor
Mod sleep
Masurare diode
Buzzer continuitate
Iluminare de fundal
Masurare relativa
Mod Max/Min
Afisare baterie descarcata
Impedanta intrare la masurarea tensiunii DC: >10 Mohm
Retinere date
Afisaj maxim: 1999

Caracteristici generale:

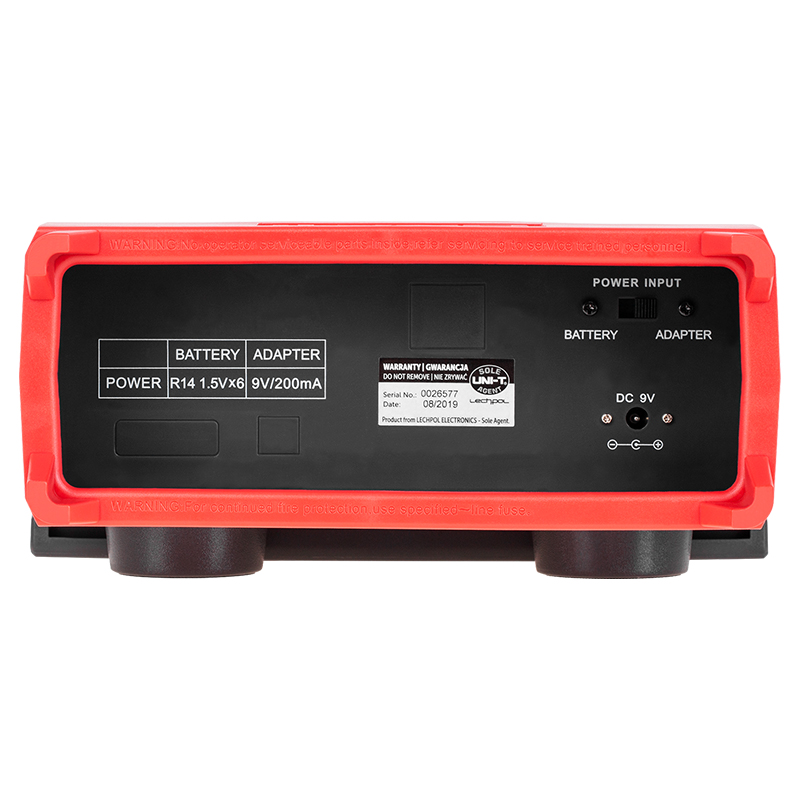

Alimentare: AC220V/50Hz sau 6 x baterii 1.5V R14
Greutate neta: 1.5 kg
Dimensiuni (mm): 300 x 245 x 105
