Cablu Coaxial Cu+cu 150m

Descriere:
- Cablu universal, impedanta 75 Ohm
- Impedanta (200MHz): 76.1 ohm
- Permitivitatea dielectrică medie: 1.38
- Atenuare: 8.5 dB/100m (200MHz)

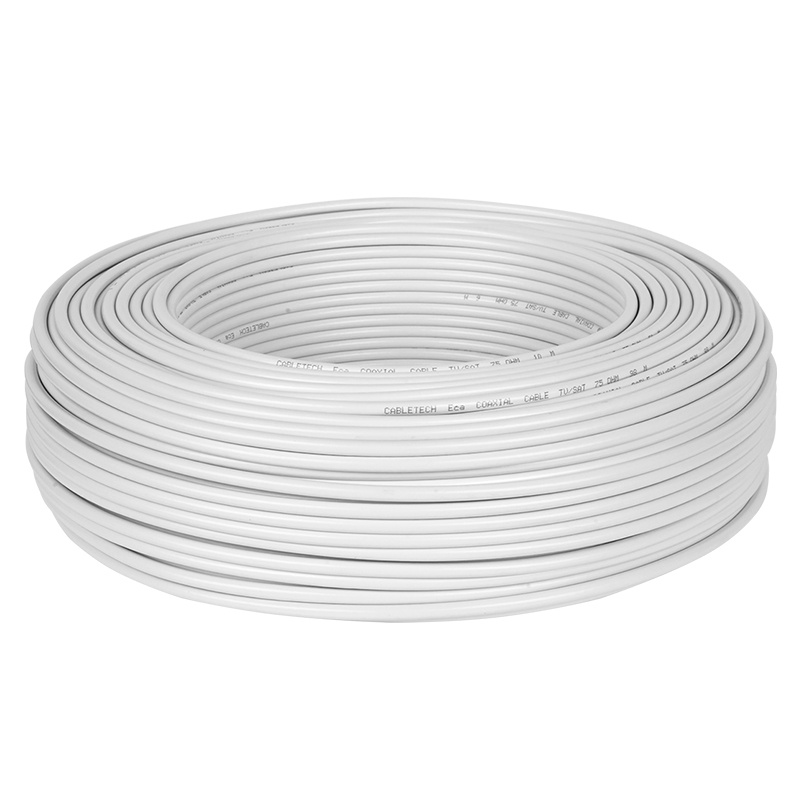

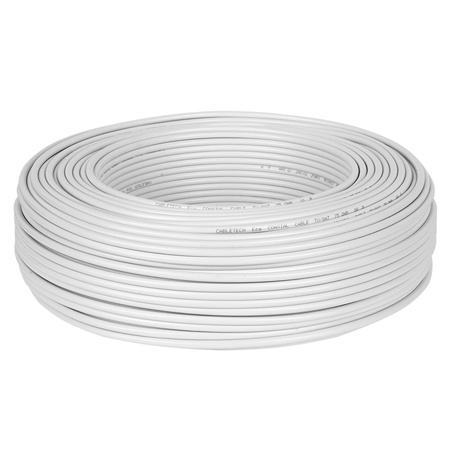

- Ambalare: rola 150m

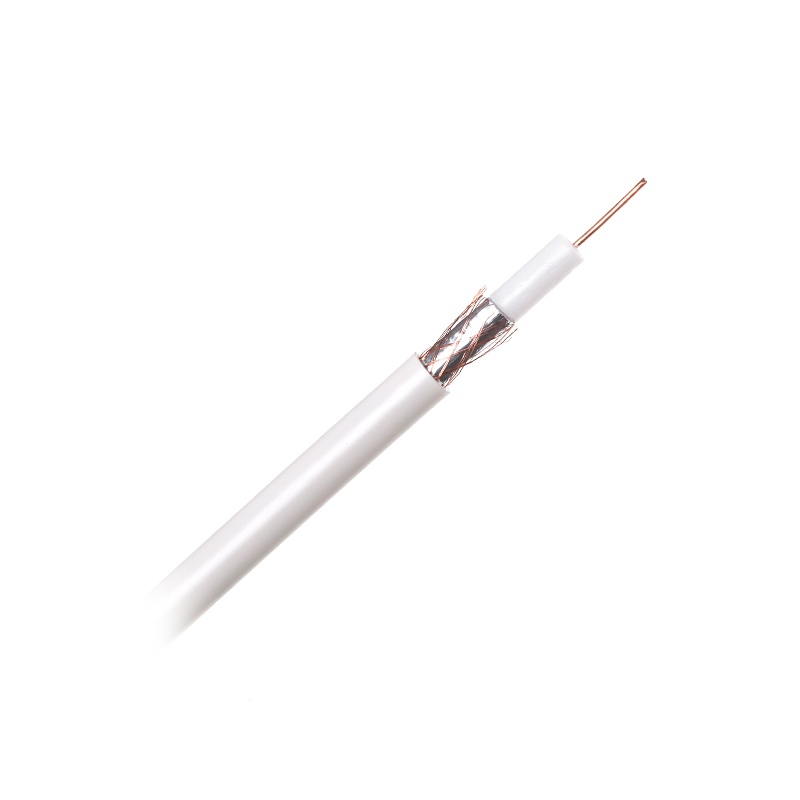

- Conductor: 1 mm din cupru
- Ecranaj: 32 fire cupru x 0.12 mm+ folie de aluminiu
- Izolatie interna: PE 4.9 mm
- Izolatie externa: 7.1 mm PVC
Atenuare:
- 5Mhz - 1,9 db/100m
- 55MHz - 5.25 db/100m
- 300MHz - 11.64 db/100m
- 500MHz - 15.09 db/100m
- 550MHz - 16.08 db/100m
- 865 MHz - 20.01 db/100m
- 1000MHz - 21.49 db/100m

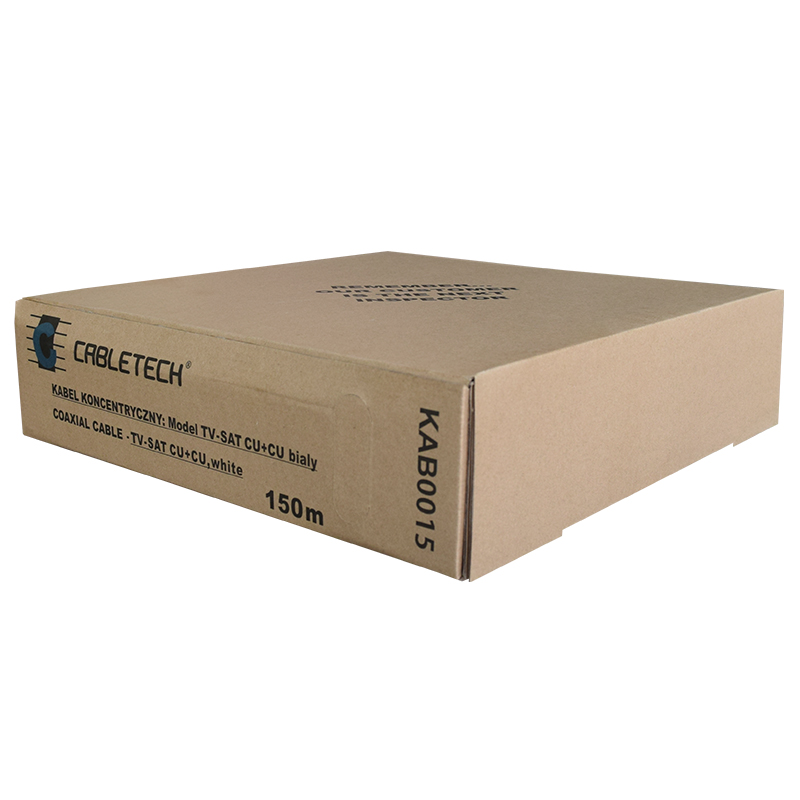

Ambalare: 4 role/cutie
